17W Pool Light RGB Color Baby Swimming Pool With GX16D Base Ip68 Led Underwater Light
Product features
1. IP68 structural waterproof, not resin filled.
2. Anti-UV transparent PC cover, won't turn yellow within 2 years.
3. 316L stainless steel material shell, strong corrosion resistance.
4. Baby swimming poolwith GX16D fireproof plastic cable.
5. Swimming pool baby is 100% water tested at a depth of 10m, with reliable performance.
Specification
| Product Item: HG-P56-18W-B-RGB(GX16D-L)-T |
| Connect with our RGB Controller (HG-8300RF) |
| Parameter | Material | Aluminum+anti UV PC cover. |
| Working voltage | AC12V |
| Wattage | 17W±10％ |
| Color | White/Red/Green/Blue/RGB |
| Light lumen | 520LM±10％ |
| Product Size | Φ177×102mm |
| Working temperature | -20～40℃ |
| Chip | SMD5050-RGB |
| LED Quantity | 105PCS |
| Led wavelength | R:620-630nm |
| G:515-525nm |
| B:460-470nm |
| warranty | 2 year |
| test Site | Underwater test lighting time(Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 45 | 52 | 56 | 62 | 51 | 55 | 61 | 65 |
| LED | Beam angle | 120° |
| working temperature | -20～40℃ |
Product Size
Application
Inground light are application: Concrete pool, Vinyl pool, Outdoor Swimming Pool,
family pool, hotel pool, underwater etc.

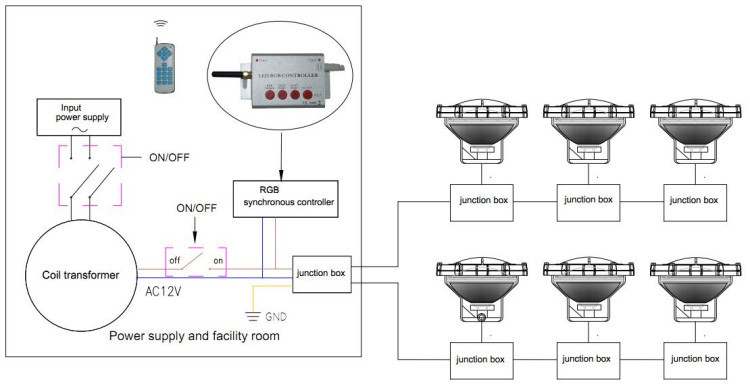

Connection
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. prefab swimming pool Must be 8 hours aging test.
3. Pool Swimming finished products all passed 30 steps quality inspection
4. Good looking stamping SS316 rivet screws,more stable, never fall off
5. Good looking with rivet screw and cover nut assembly, longer lifespan.
6. IP68 structure waterproof, can long time use underwater.
Some tips for you
Q1:How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3:The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip should be ≤120℃, so the center temperature at the LED bottom of light board should be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat through structure.
4. According to the LED characteristic, the center temperature at the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality has the guarantee, and the faulty rate is less than three per thousand .
